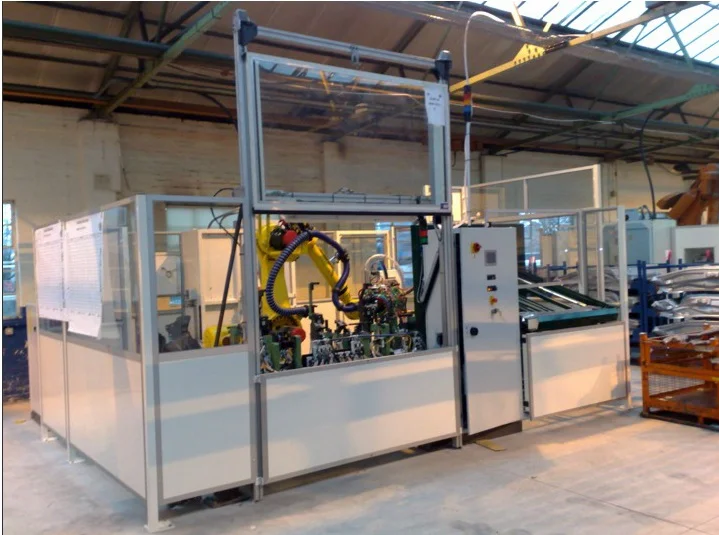

Pneumatic Rise and Fall Doors

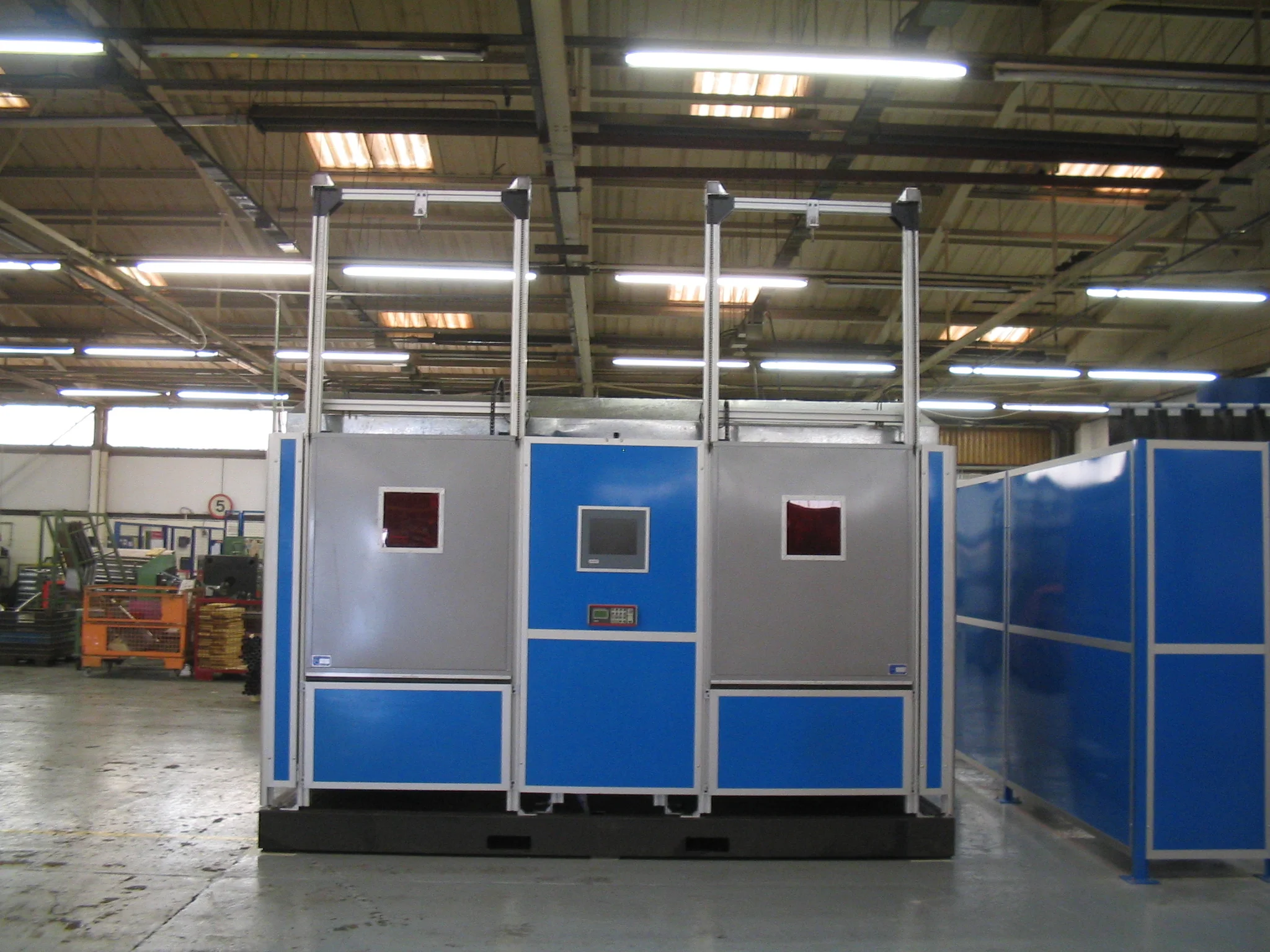

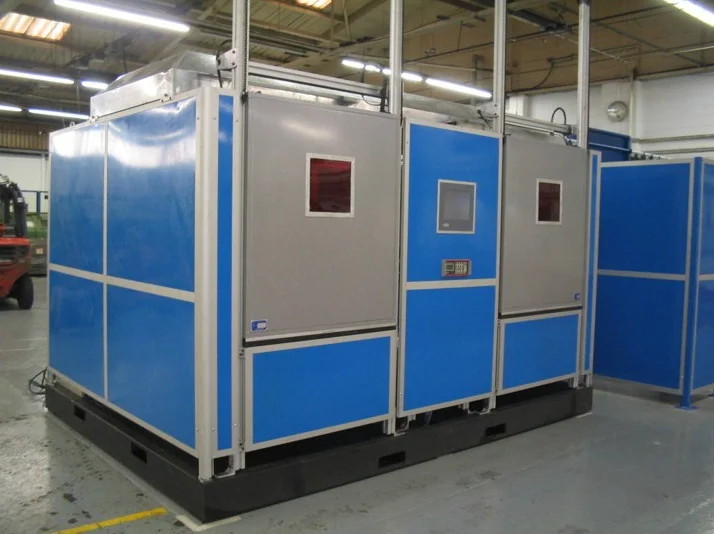

Centreline Rise and Fall Doors are pneumatic systems designed to provide a physical barrier for automated manufacturing processes. Each system delivers a secure, aesthetic, and cost-effective solution to guarding machinery that at the point of entry requires frequent operator access.

Our Rise and Fall Doors are commonly installed for

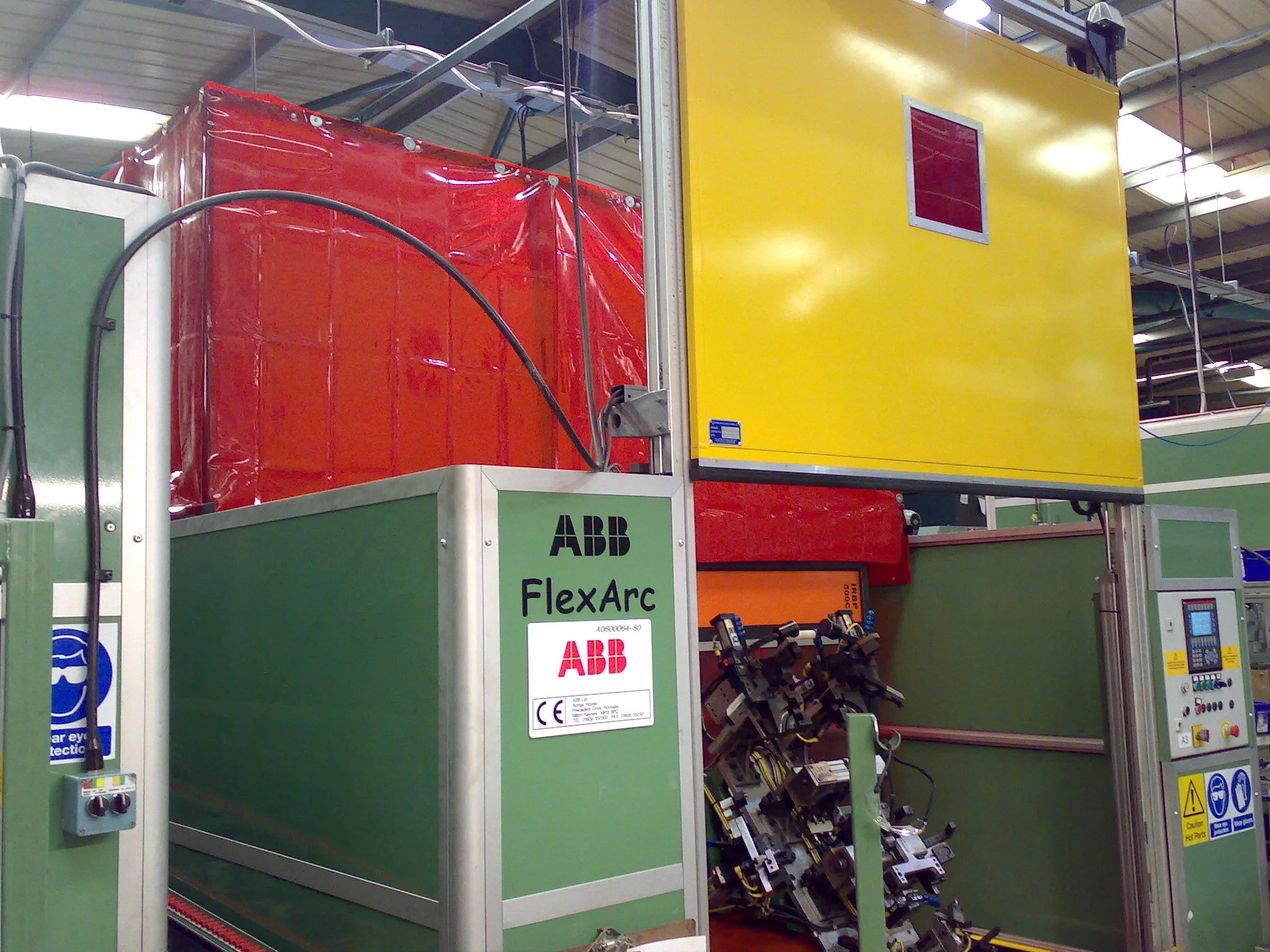

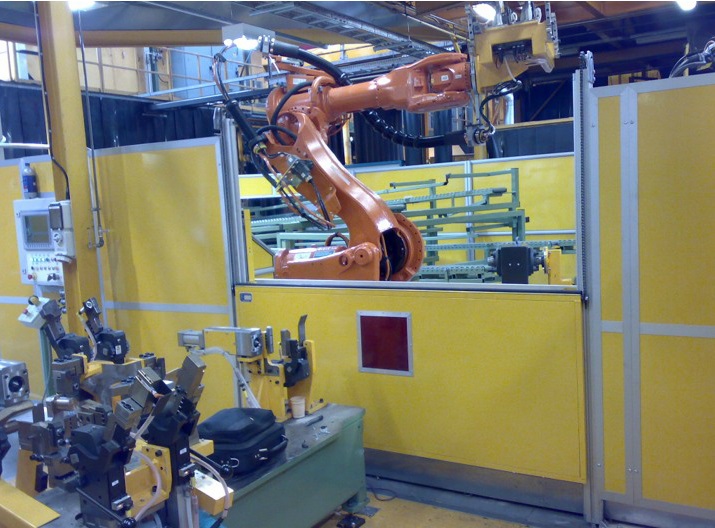

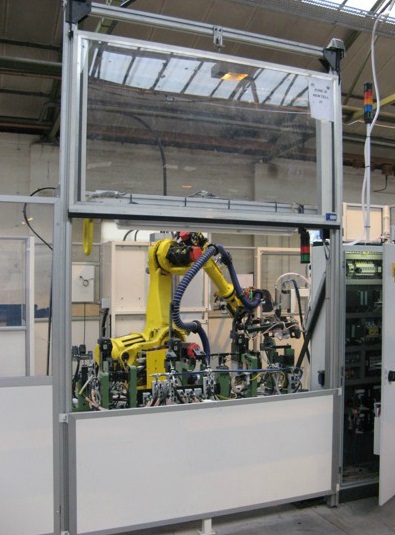

  • Robot cell stations
  • Part assembly

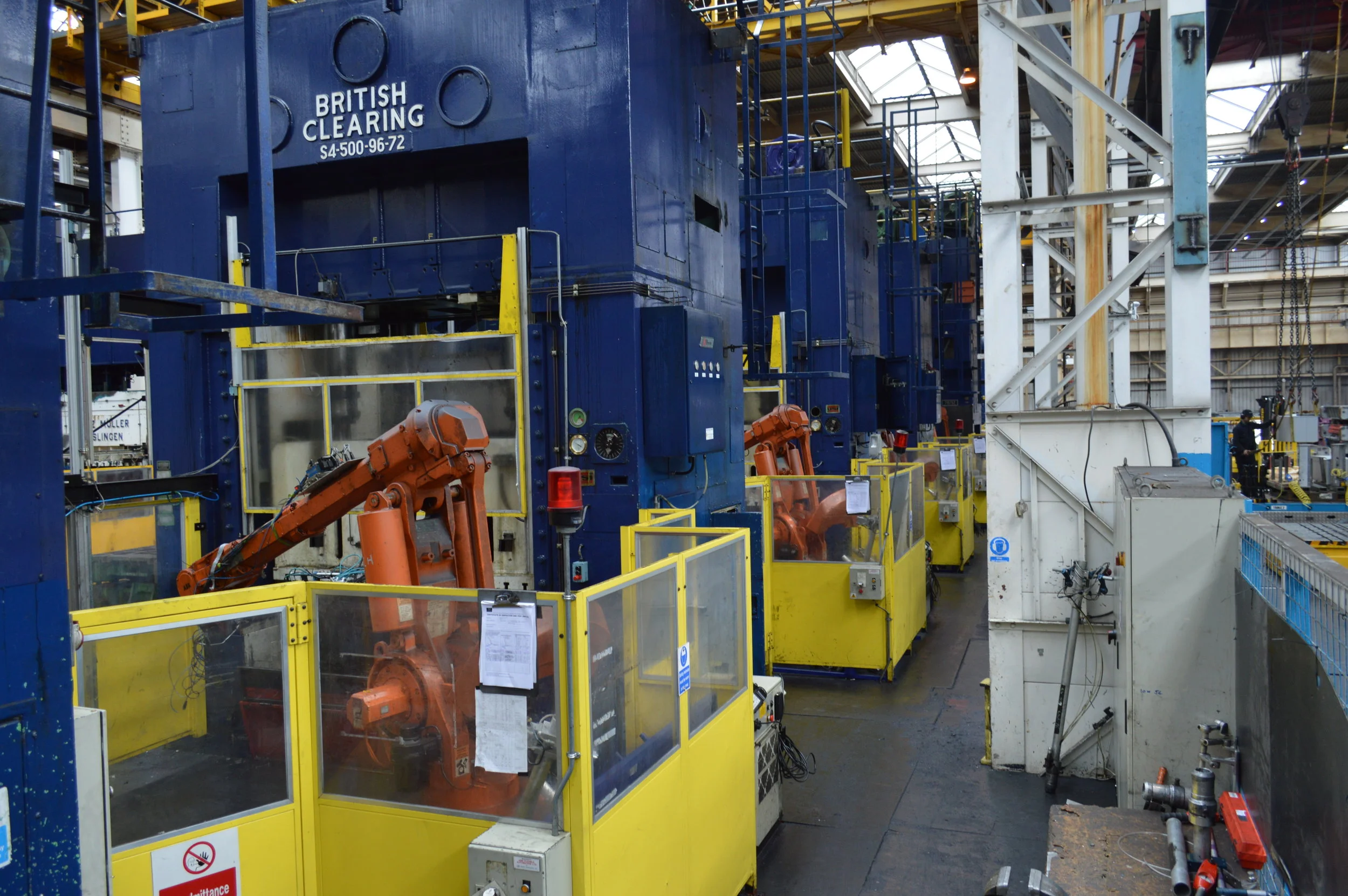

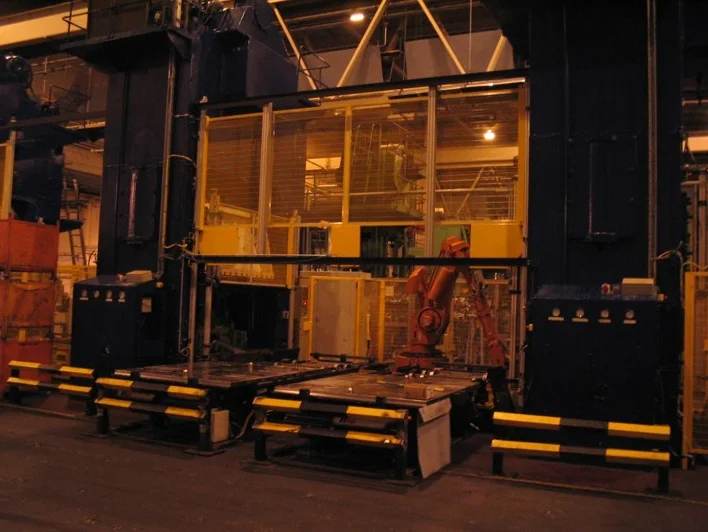

  • Power press and conveyor loading
  • Conveyor openings.

With each Rise and Fall Door, a 'safe edge' system can be fitted to return the door to its open position should the closure sequence be interrupted. As standard, we supply two safety limit switches that should be interlocked into the machine circuitry to interlock the door system. Interlocking prevents machine operation until the door is completely secure. We have a wide range of safety features available to install depending on the usage and safety requirements of the system.

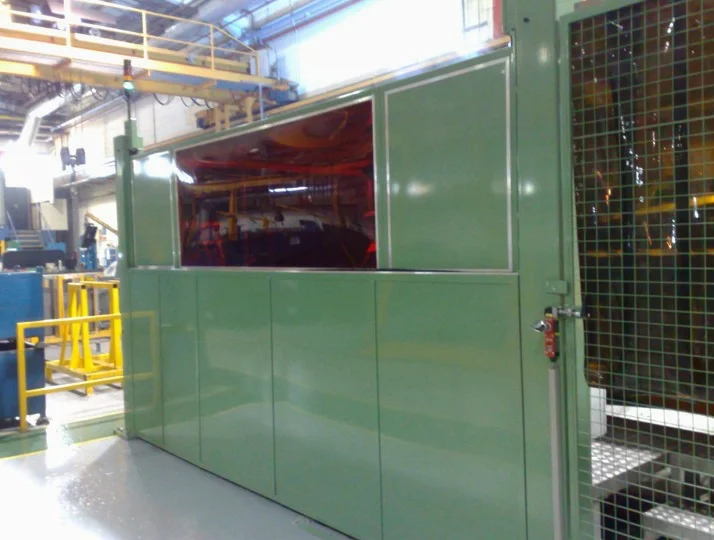

The selection of infill materials is dependent on two key areas the first is the potential hazards needing containment and two the usage of the system. Each rise and fall door uses a high-quality aluminium extrusion frame with infill options comprising of sheet steel, poly-carbonate, glass, or a mixture of the three. Welded or woven mesh is not considered a suitable material due to the risk posed by panel movement and the inherent trapping hazard that this would create.

All our systems are compliant to the latest machine directives as standard and can be accompanied with a decoration of conformity.

To find out more information on machine guarding and law adherence please click this link.

Product Integration

  • At Centreline, we design our systems to support continuous facility enhancements.
  • Rise and Fall systems can be adapted to a multitude of applications depending on the requirements of the client.
  • If machine guarding is required to accompany this system, we produce a high-quality variation that can be collectively installed to minimise any production interruptions.

Colour Coating

  • As standard, all aluminium frames come with a hard anodised finish but can be powder coated within our facility for complete customisation.
  • Rise and Fall Door applications deliver a durable and hard-wearing finish.
  • We have an extensive range of RAL colours available to support all specification requirements.

 Design And Consultancy

  • CAD drawings can be developed in both 2D and 3D visualisations at request.
  • No obligation On-site surveys using over 32 years of industry expertise.
  • As an industry expert, we can help explore your options and offer independent advice.
  • Bespoke designs compliant with the latest industry standards.


  • Our team supports clients from the earliest stages of design, through to installation and sign off.
  • Installations are carried out by our dedicated teams to ensure the optimum quality of our service.
  • Installation services offered worldwide.
  • Aftercare support comprising of extended warranty, spares, maintenance, and service packages tailored to the needs of the client.
